Single Crank Semi-closed Press Machine
The DEYU APD-110 is a single-crank semi-closed press machine with a stress-relieved welded steel frame. Send us your die dimensions, material thickness and required output to check whether the press suits your stamping operation.
描述
1. Single Crank Semi-closed Press Machine
The DEYU APD-110 is a mechanical stamping press with a single-crank drive and a semi-closed frame. Its welded steel frame is stress-relieved after welding. For buyers planning to use an existing die, the first step is to check both the stamping load and the space needed to mount and operate the tool.
2. Frame and Die Setup
- Frame construction: The APD-110 uses a welded steel body with a semi-closed working area.
- Die mounting: Compare the upper and lower die dimensions with the slide and bolster. Include the space needed for clamps and check the mounting positions against your die drawing.
- Material handling: Identify how stock enters the die and how parts and scrap are removed. For coil-fed production, include the feed direction and feed height when requesting a quotation.

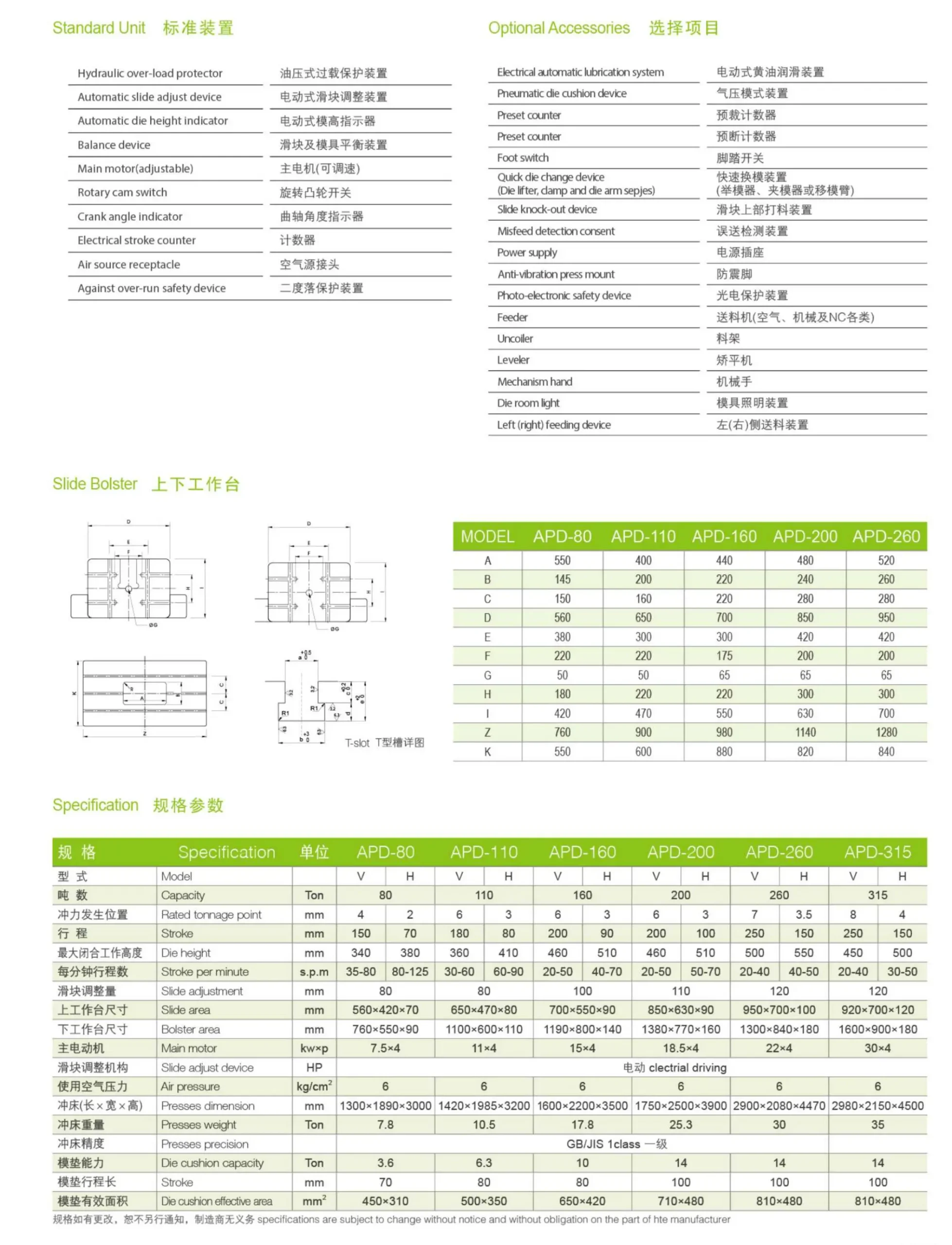

3. Technical Specifications
The table compares the APD-110 with three other models in the APD series. Where two values are shown, the first is for the V type and the second is for the H type.
| Specification | Unit | APD-110 | APD-160 | APD-200 | APD-260 |
|---|---|---|---|---|---|
| Model variant | — | V / H | V / H | V / H | V / H |
| Rated capacity | ton | 110 | 160 | 200 | 260 |
| Rated tonnage point | mm | 6 / 3 | 6 / 3 | 6 / 3 | 7 / 3.5 |
| Slide stroke | mm | 180 / 80 | 200 / 90 | 200 / 100 | 250 / 150 |
| Die height | mm | 360 / 410 | 460 / 510 | 460 / 510 | 500 / 550 |
| Operating speed | strokes/min | 30–60 / 60–90 | 20–50 / 40–70 | 20–50 / 50–70 | 20–40 / 40–50 |
| Slide adjustment | mm | 80 | 100 | 110 | 120 |
| Slide dimensions | mm | 650 × 470 × 80 | 700 × 550 × 90 | 850 × 630 × 90 | 950 × 700 × 100 |
| Bolster dimensions | mm | 1100 × 600 × 110 | 1190 × 800 × 140 | 1380 × 770 × 160 | 1300 × 840 × 180 |
| Main motor | kW × poles | 11 × 4 | 15 × 4 | 18.5 × 4 | 22 × 4 |
| Slide adjustment method | — | Motorized | |||
| Air pressure | kgf/cm² | 6 | 6 | 6 | 6 |
| Press dimensions (L × W × H) | mm | 1420 × 1985 × 3200 | 1600 × 2200 × 3500 | 1750 × 2500 × 3900 | 2900 × 2080 × 4470 |
| Press weight | ton | 10.5 | 17.8 | 25.3 | 30 |
| Press precision | — | GB/JIS Class 1 | |||
| Die cushion capacity | ton | 6.3 | 10 | 14 | 14 |
| Die cushion stroke | mm | 80 | 80 | 100 | 100 |
| Die cushion effective dimensions | mm × mm | 500 × 350 | 650 × 420 | 710 × 480 | 810 × 480 |
