110 Ton Press Machine

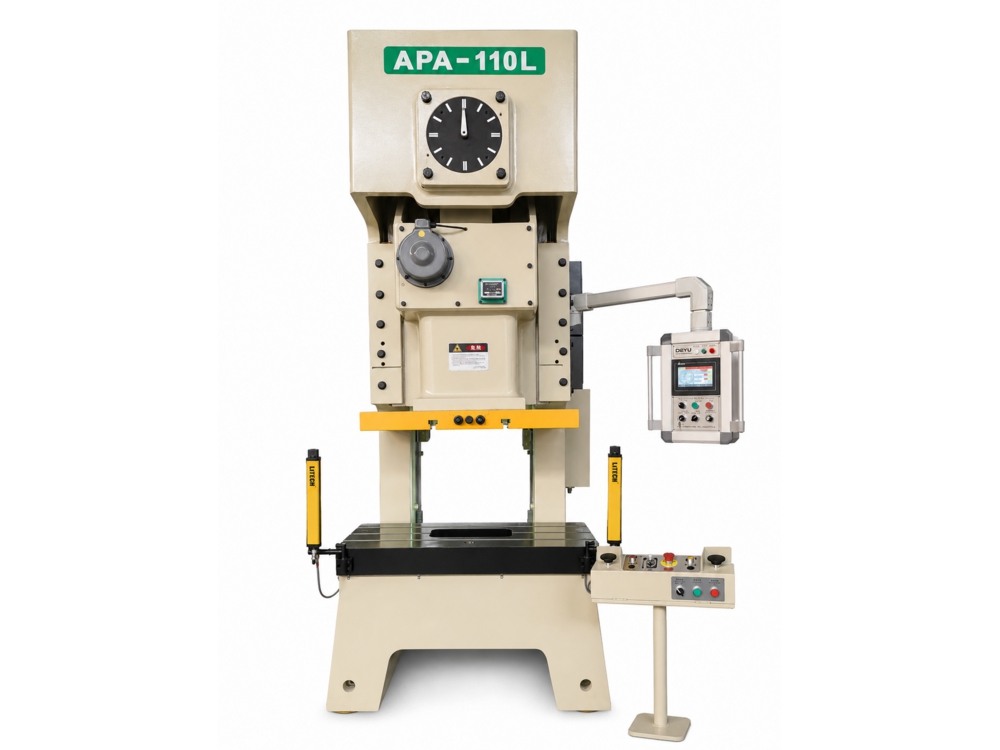

The DEYU APA-110 is a 110-ton C-frame single-crank precision press designed for metal stamping applications. Its open-front structure provides convenient access for die installation, adjustment and material feeding. The press can be connected with a feeder, straightener and decoiler to form an automated stamping line.
描述
1. 110 Ton Press Machine Introduction
The APA-110 is a 110-ton C-frame single-crank precision press. It is suitable for punching, blanking, bending and forming metal parts. The open-front working area makes die installation, inspection and material feeding more convenient.
Before selecting the APA-110, the die size, material thickness, required stroke, production speed and load position should be checked together.
2. APA-110 Press Machine Features
- C-frame structure for convenient die access
- 110-ton nominal press capacity
- Single-crank drive structure
- Symmetrical slide guide design for stable operation
- Hydraulic overload protection
- Reliable clutch and brake system
- Suitable for connection with feeders, straighteners and decoilers
- Applicable to automated and continuous stamping production
3. Applications
The APA-110 press machine can be used for producing:
- Automotive stamping parts
- Electrical components
- Metal brackets and connectors
- Home appliance components
- Hardware products
- Parts produced with progressive dies
4. Technical Specifications
The table below compares the technical specifications of the APA-80, APA-110 and APA-160 C-frame single-crank precision presses. The APA-110 is the featured model on this page. V-type and H-type configurations have different speeds, strokes and die heights.
| Specification | Unit | APA-80 | APA-110 | APA-160 |
|---|---|---|---|---|
| Model | — | V / H | V / H | V / H |
| Capacity | Ton | 80 | 110 | 160 |
| Rated tonnage point | mm | V: 4 / H: 2 | V: 6 / H: 3 | V: 6 / H: 3 |
| Variable speed | s.p.m | V: 35–80 / H: 80–120 | V: 30–60 / H: 60–90 | V: 20–50 / H: 40–70 |
| Stable speed | s.p.m | 65 | 50 | 35 |
| Stroke | mm | V: 150 / H: 70 | V: 180 / H: 80 | V: 200 / H: 90 |
| Die height | mm | V: 340 / H: 380 | V: 360 / H: 410 | V: 460 / H: 515 |
| Slide adjustment | mm | 80 | 80 | 100 |
| Slide area | mm | 770 × 420 × 70 | 910 × 470 × 80 | 990 × 550 × 90 |
| Bolster area | mm | 1000 × 550 × 90 | 1150 × 600 × 110 | 1250 × 800 × 140 |
| Shank hole | mm | Ø50 | Ø50 | Ø65 |
| Main motor | kW × P | 7.5 × 4 | 11 × 4 | 15 × 4 |
| Slide adjustment device | — | Manual operation | Electrical driving | Electrical driving |
| Air pressure | kg/cm² | 6 | 6 | 6 |
| Press precision | — | GB/JIS Class 1 | GB/JIS Class 1 | GB/JIS Class 1 |
| Press dimensions (L × W × H) | mm | 1875 × 1310 × 3100 | 2000 × 1440 × 3300 | 2420 × 1530 × 3800 |
| Press weight | Ton | 6.5 | 9.6 | 16 |
| Die cushion capacity | Ton | 3.6 | 6.3 | 10 |
| Die cushion stroke | mm | 70 | 80 | 80 |
| Die cushion effective area | mm² | 450 × 310 | 500 × 350 | 650 × 420 |
