Closed Frame Single Crank Press

Closed Frame Single Crank Press

Capacity: 160, 200, 260, 300, 400, 500 and 600 tons.

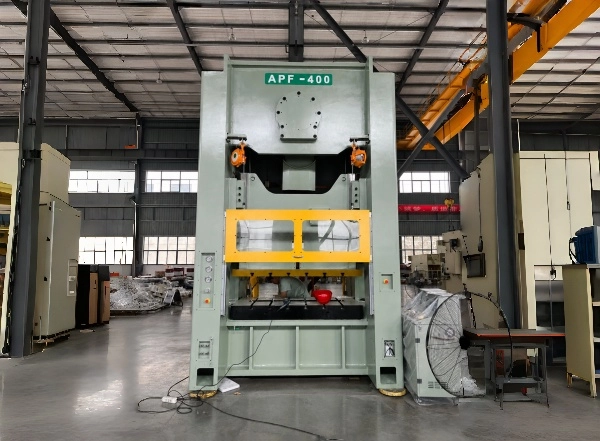

The DEYU APF series combines a closed H-frame with a single-crank drive for precision sheet metal stamping. Side openings range from 650 × 500 mm to 1,000 × 600 mm, depending on the model.

    描述

    1. Product Description

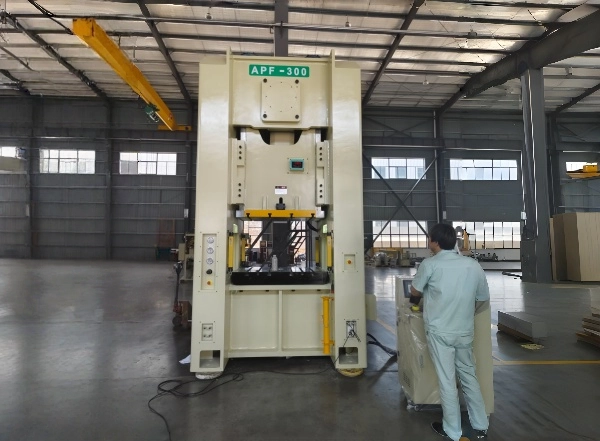

    The DEYU APF series uses a single-crank drive in a closed frame for sheet metal stamping. Seven models cover rated capacities from 160 to 600 tons. Each model includes motorized slide adjustment and a digital die height indicator for die setup.

    To check whether an existing die fits, compare its closed height with the maximum die height and slide adjustment range of the press. Then check the upper die shoe against the slide face and the lower die shoe against the bolster. The table below compares these dimensions for the APF-300, APF-400, APF-500 and APF-600.

    2. Features

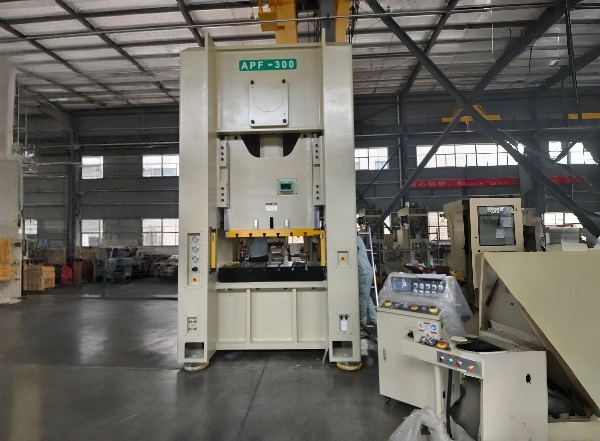

    • Closed H-frame with side access: Side openings range from 650 × 500 mm to 1,000 × 600 mm, depending on the model.
    • Variable operating speed: The APF-160 and APF-200 run at 20–50 strokes per minute. Speed ranges for the larger models are listed below.
    • Motorized slide adjustment: The adjustment range is 100 to 120 mm. A digital indicator displays die height in 0.1 mm increments.
    • Press accuracy: The DEYU catalog lists GB/JIS Class 1 for all seven models.

    3. Technical Specifications

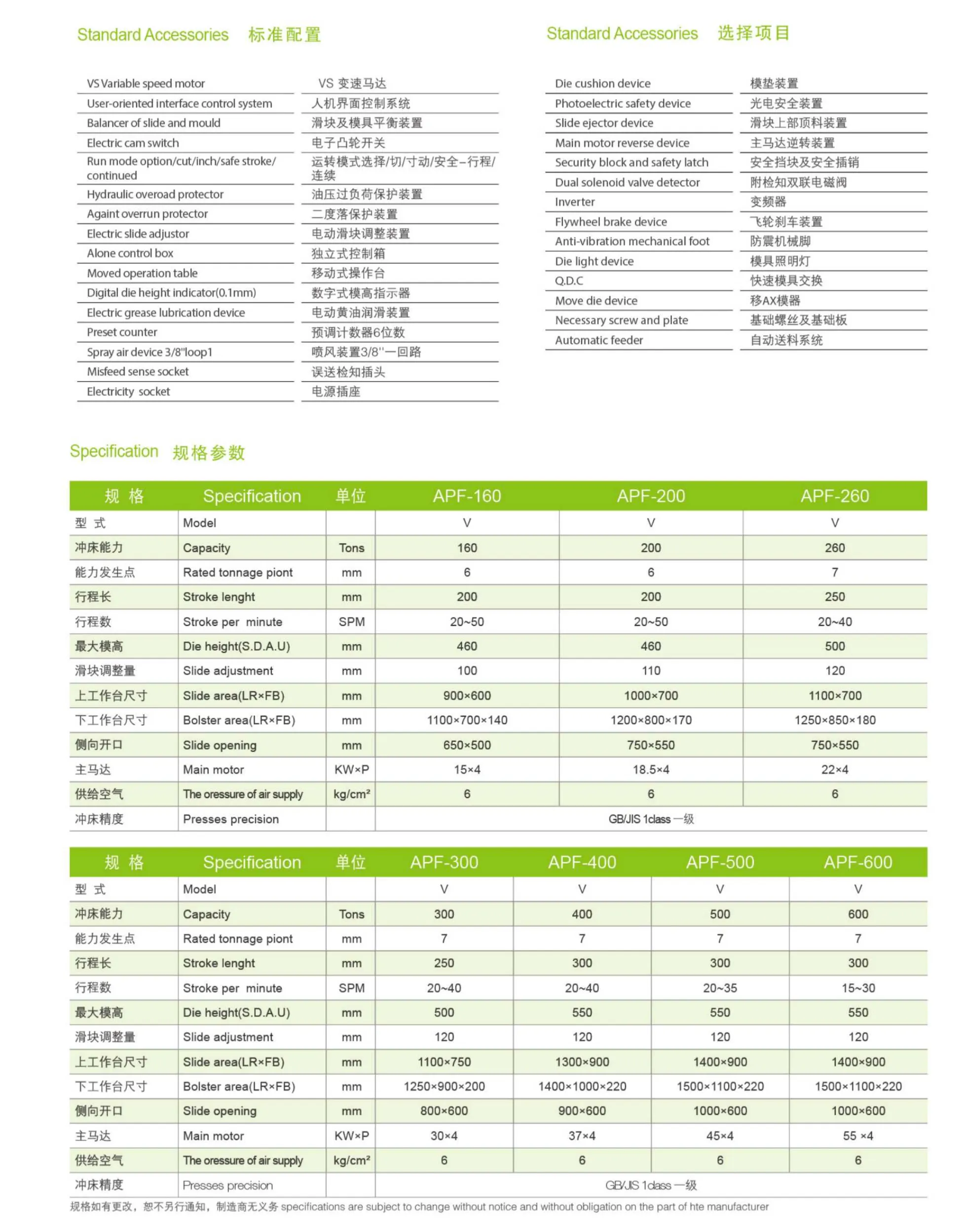

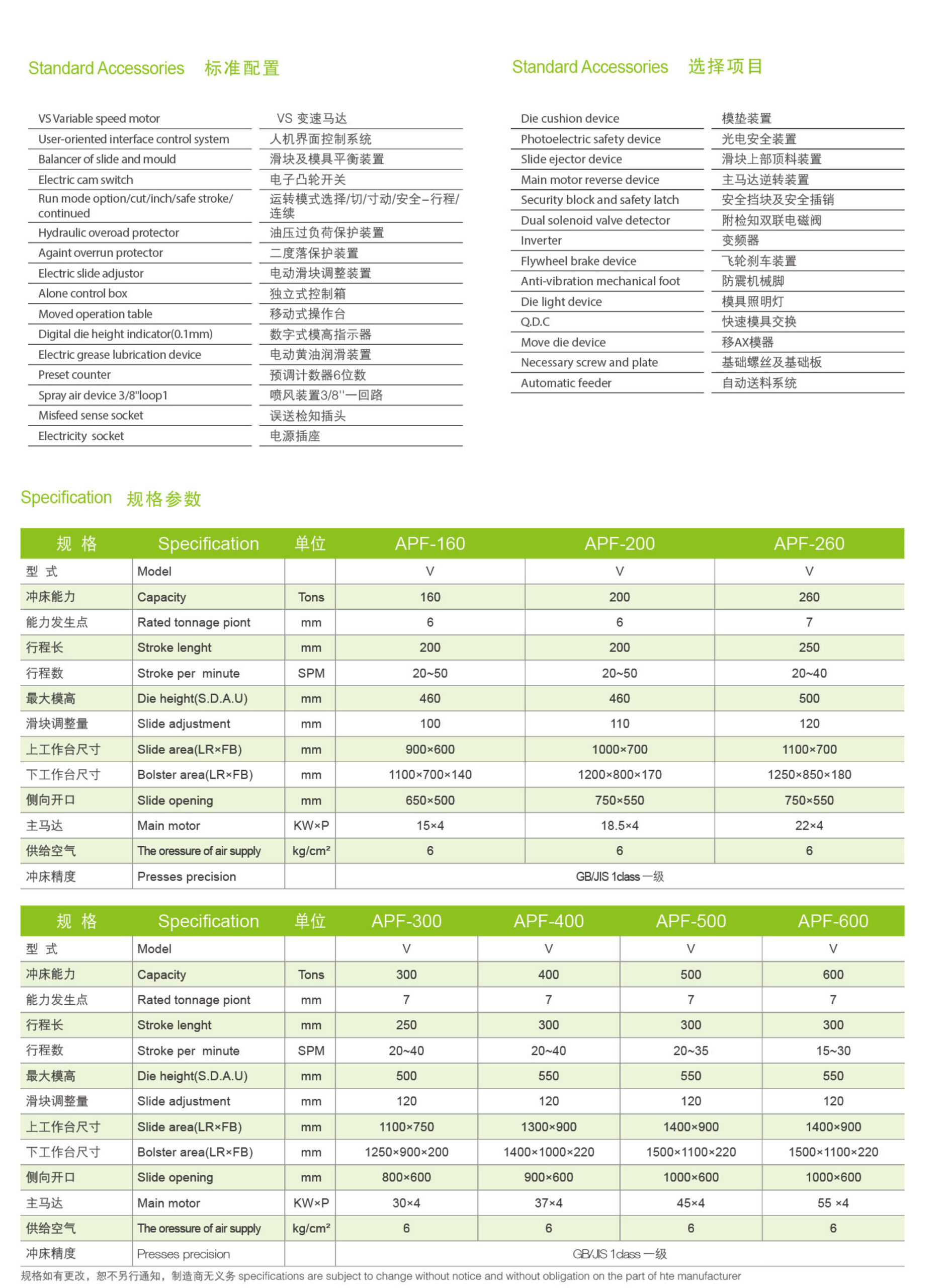

    SpecificationUnitAPF-300APF-400APF-500APF-600
    ModelVVVV
    CapacityTons300400500600
    Rated tonnage pointmm7777
    Stroke lengthmm250300300300
    Strokes per minuteSPM20~4020~4020~3515~30
    Die height(S.D.A.U)mm500550550550
    Slide adjustmentmm120120120120
    Slide area(LR×FB)mm1100×7501300×9001400×9001400×900
    Bolster area(LR×FB)mm1250×900×2001400×1000×2201500×1100×2201500×1100×220
    Side openingmm800×600900×6001000×6001000×600
    Main motorKW×P30×437×445×455 ×4
    Air supply pressurekg/cm²6666
    Press accuracyGB/JIS Class 1
