Double Crank Precision Press Machine

Double Crank Precision Press Machine

Capacity: 110, 160, 200, 250 and 315 tons.

The APC Series double crank precision press machine adopts a C-frame and two-point drive. Standard equipment includes a slide balancer, hydraulic overload protection, electric slide adjustment and a digital die-height indicator. Automatic feeding equipment is available.

    描述

    1. Double Crank Precision Press Machine Introduction

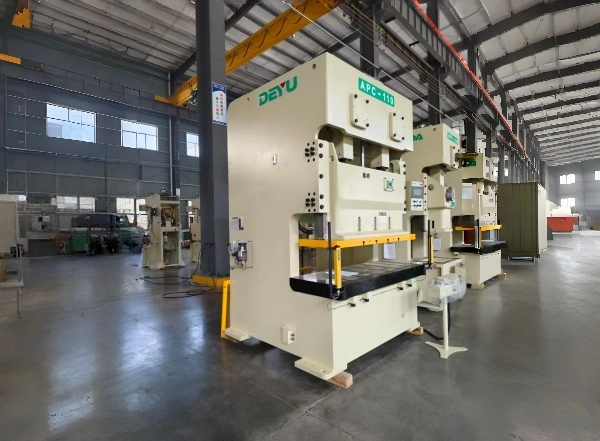

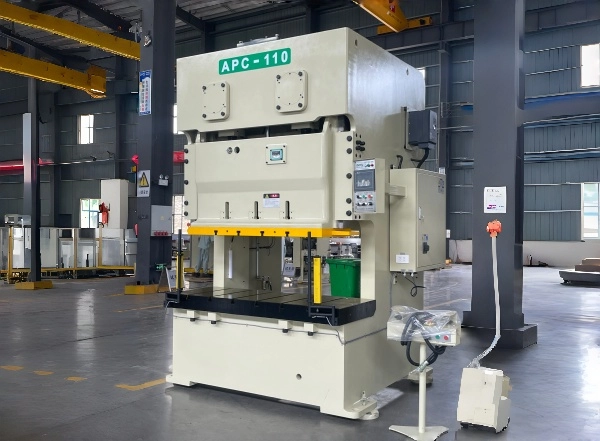

    The APC Series double crank precision press machine is available from 110 to 315 tons. Its double-crank drive works through two points on the slide. The C-frame has an open working area and a wider table than the APA Series.

    Symmetrical slide guides and a balancing device support slide movement. The crankshaft, gears and connecting rods are hardened and ground. V and H versions provide different stroke lengths and operating speeds.

    2. Double Crank Precision Press Machine Features

    • Double-crank, two-point drive with a wide working table.
    • Symmetrical slide guides and slide balancing device.
    • Clutch and brake system with dual solenoid valve.
    • Hydraulic overload protection.
    • Electric slide adjustment with digital die-height display.
    • Inching, single-stroke and continuous operation.
    • Stroke counters and misfeed detection circuit.
    • Optional die cushion, automatic lubrication and safety light curtain.
    • Connection with feeders, decoilers and straighteners.

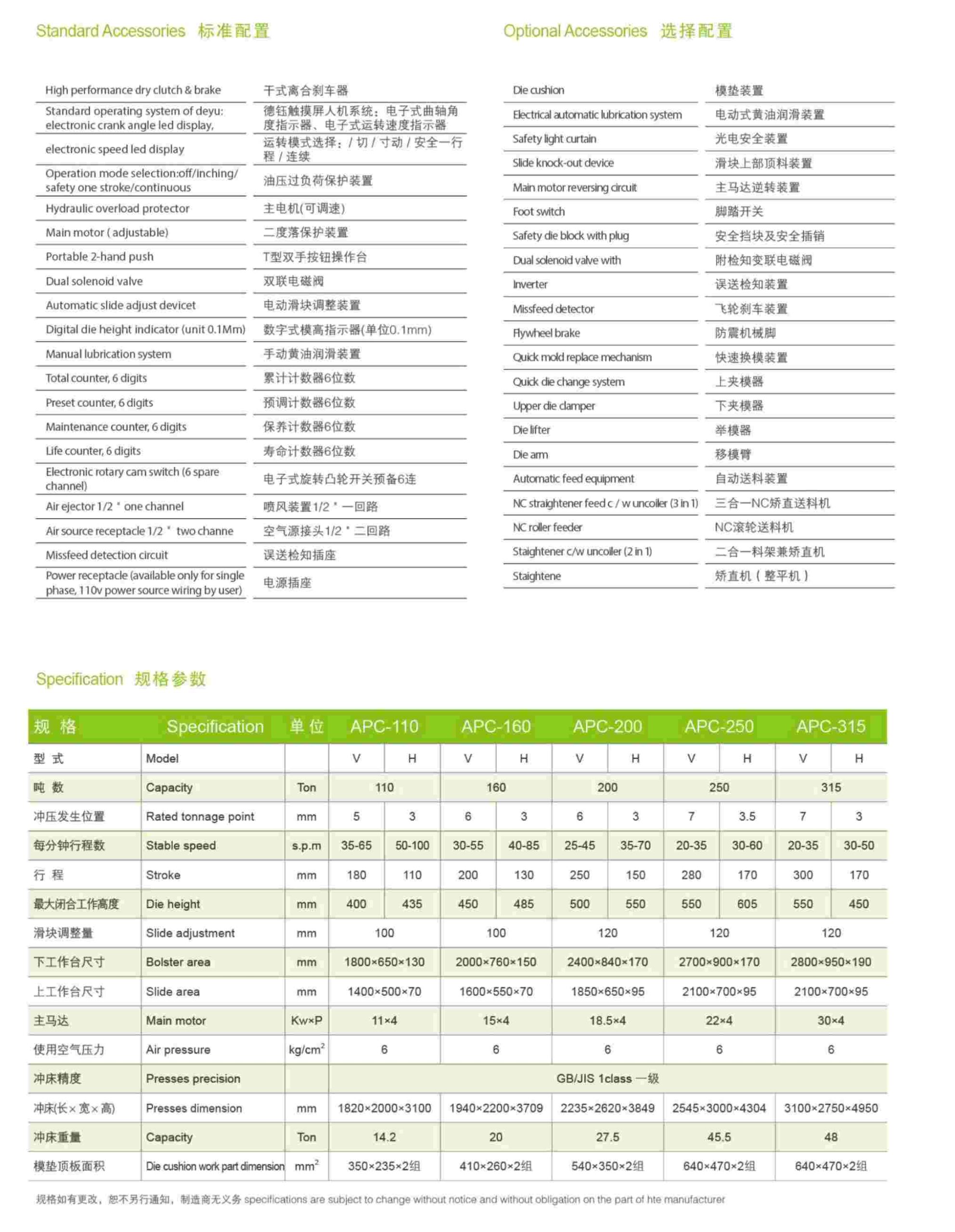

    3. Double Crank Precision Press Machine Specifications

    SpecificationUnitAPC-110APC-160APC-200APC-250APC-315
    Type—V / HV / HV / HV / HV / H
    Nominal capacityton110160200250315
    Rated tonnage pointmm5 / 36 / 36 / 37 / 3.57 / 3
    Strokes per minutespm35–65 / 50–10030–55 / 40–8525–45 / 35–7020–35 / 30–6020–35 / 30–50
    Stroke lengthmm180 / 110200 / 130250 / 150280 / 170300 / 170
    Slide adjustmentmm100100120120120

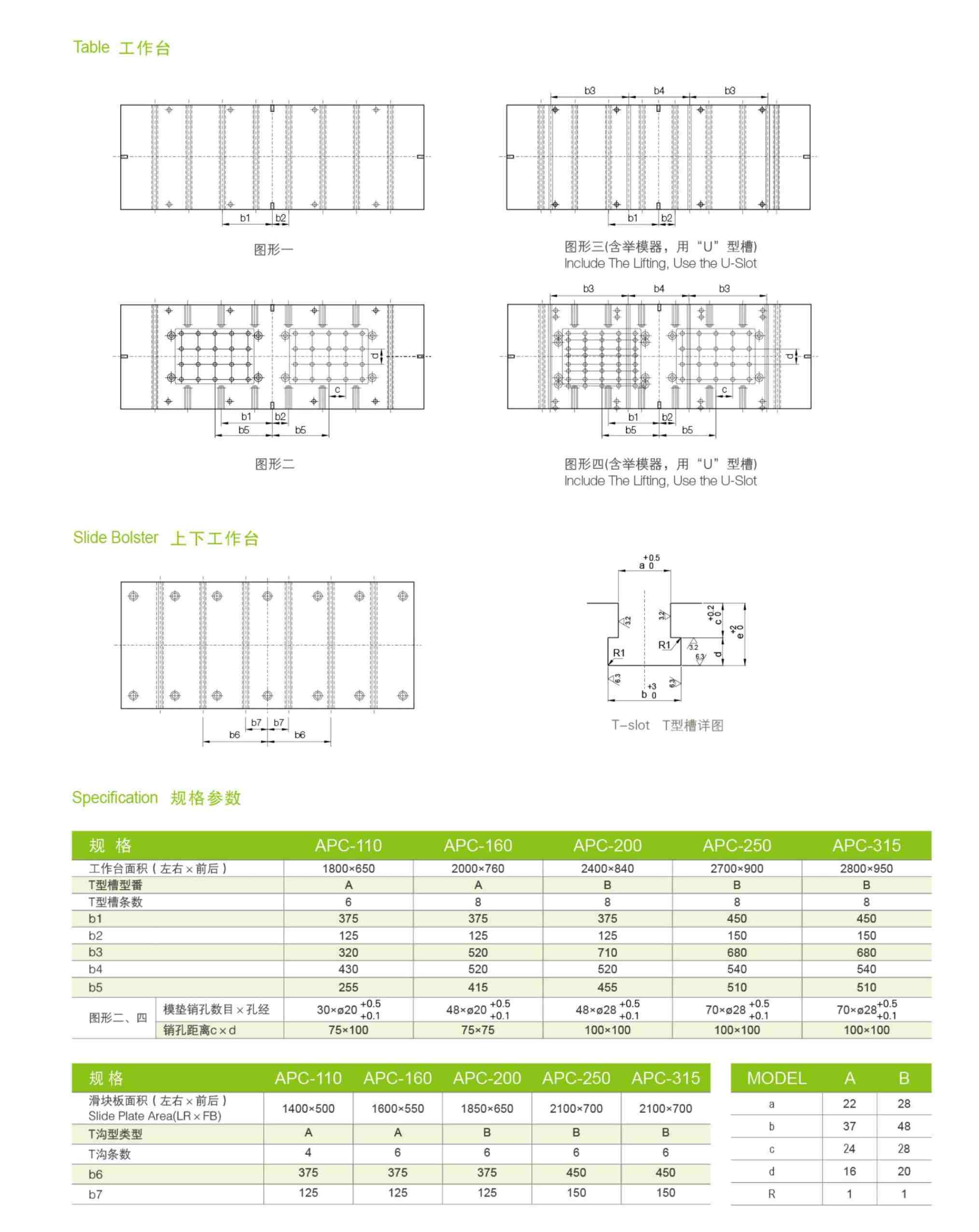

    Bolster size (LR × FB × thickness)mm1800 × 650 × 1302000 × 760 × 1502400 × 840 × 1702700 × 900 × 1702800 × 950 × 190
    Slide size (LR × FB × thickness)mm1400 × 500 × 701600 × 550 × 701850 × 650 × 952100 × 700 × 952100 × 700 × 95
    Main motorkW × P11 × 415 × 418.5 × 422 × 430 × 4
    Air pressurekg/cm²66666

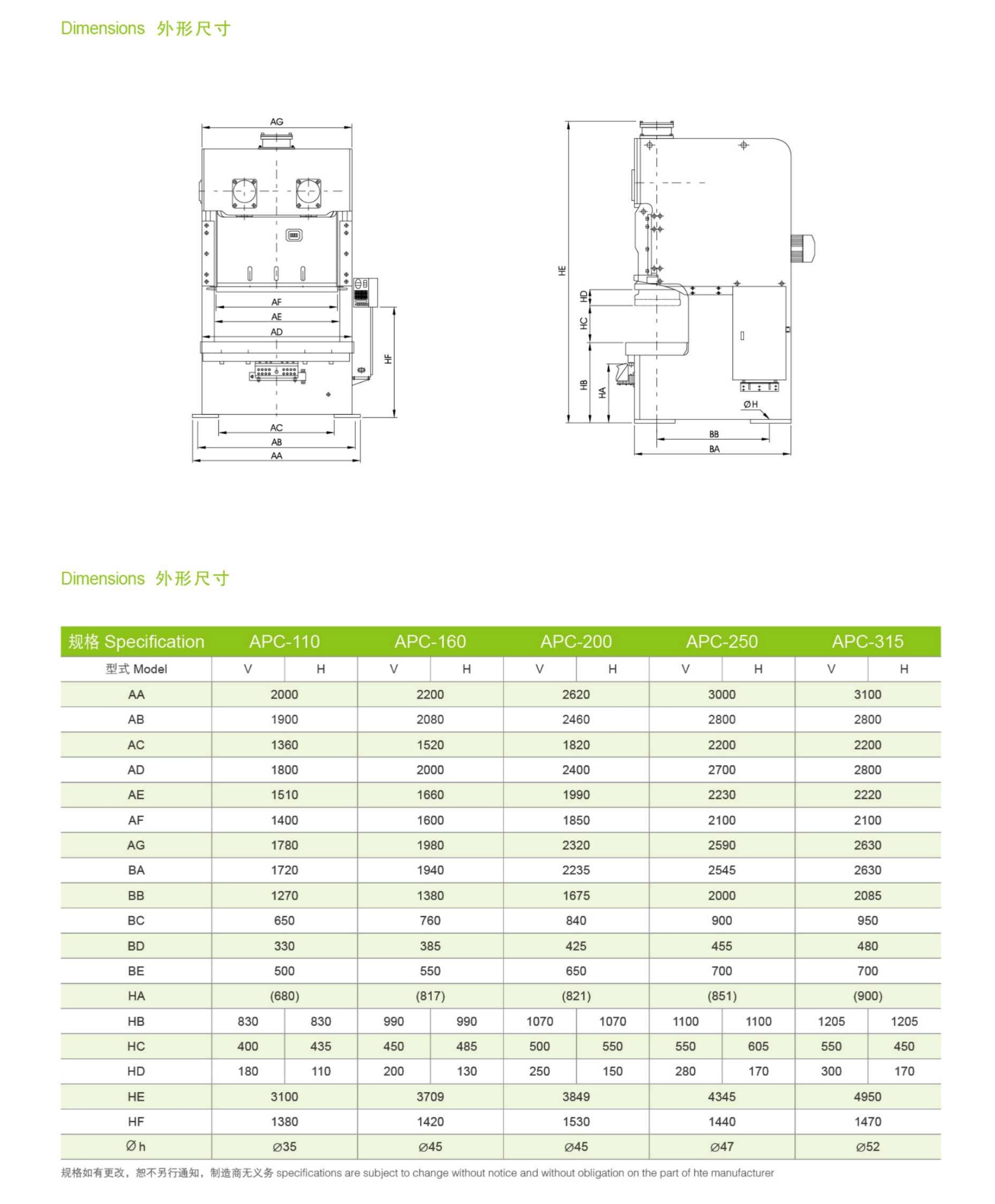

    Machine dimensions (L × W × H)mm1820 × 2000 × 31001940 × 2200 × 37092235 × 2620 × 38492545 × 3000 × 43043100 × 2750 × 4950
    Machine weightton14.22027.545.548
