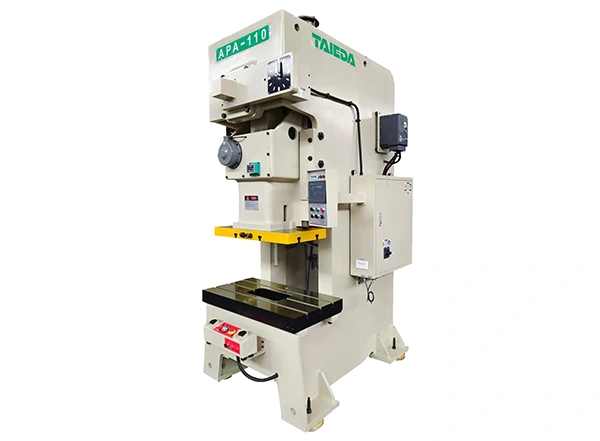

The C frame single crank power press combines a single-point drive with an open working area for die setup and material feeding. Available from 15 to 315 tons, the APA Series handles punching, blanking, bending and forming with suitable tooling. Stroke, speed, die height and table dimensions vary by model.

    描述

    1. Product Description

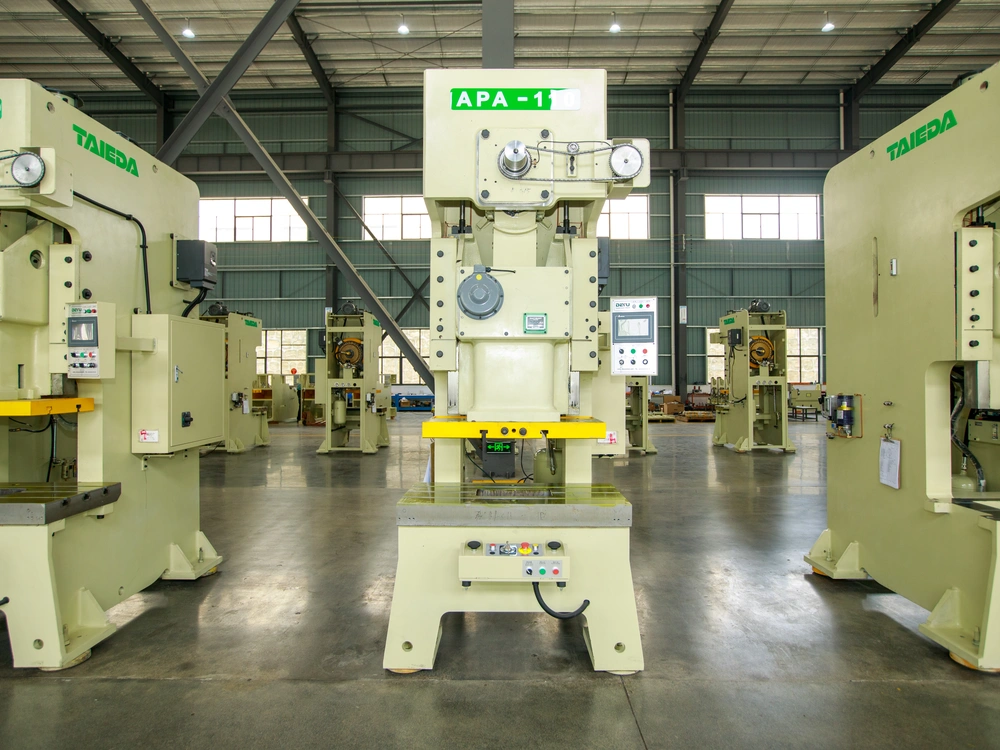

    The C frame single crank power press uses one crank to drive the slide through a single connection point. Its open-front frame provides access from three sides for die installation, adjustment and material handling.

    The APA Series covers 15 to 315 tons for punching, blanking, bending and forming with suitable dies. Table size, die height, stroke and speed vary by model. Feeders, straighteners and decoilers can be connected for coil-fed stamping.

    2. Product Features

    • C-frame construction with access from the front and both sides.
    • Single-crank drive with one connection point on the slide.
    • Capacity range from 15 to 315 tons.
    • V-type and H-type specifications with different strokes and speed ranges on applicable models.
    • Motorized slide adjustment on the APA-160, APA-200, APA-260 and APA-315.
    • Connection with feeding equipment for automated material handling.

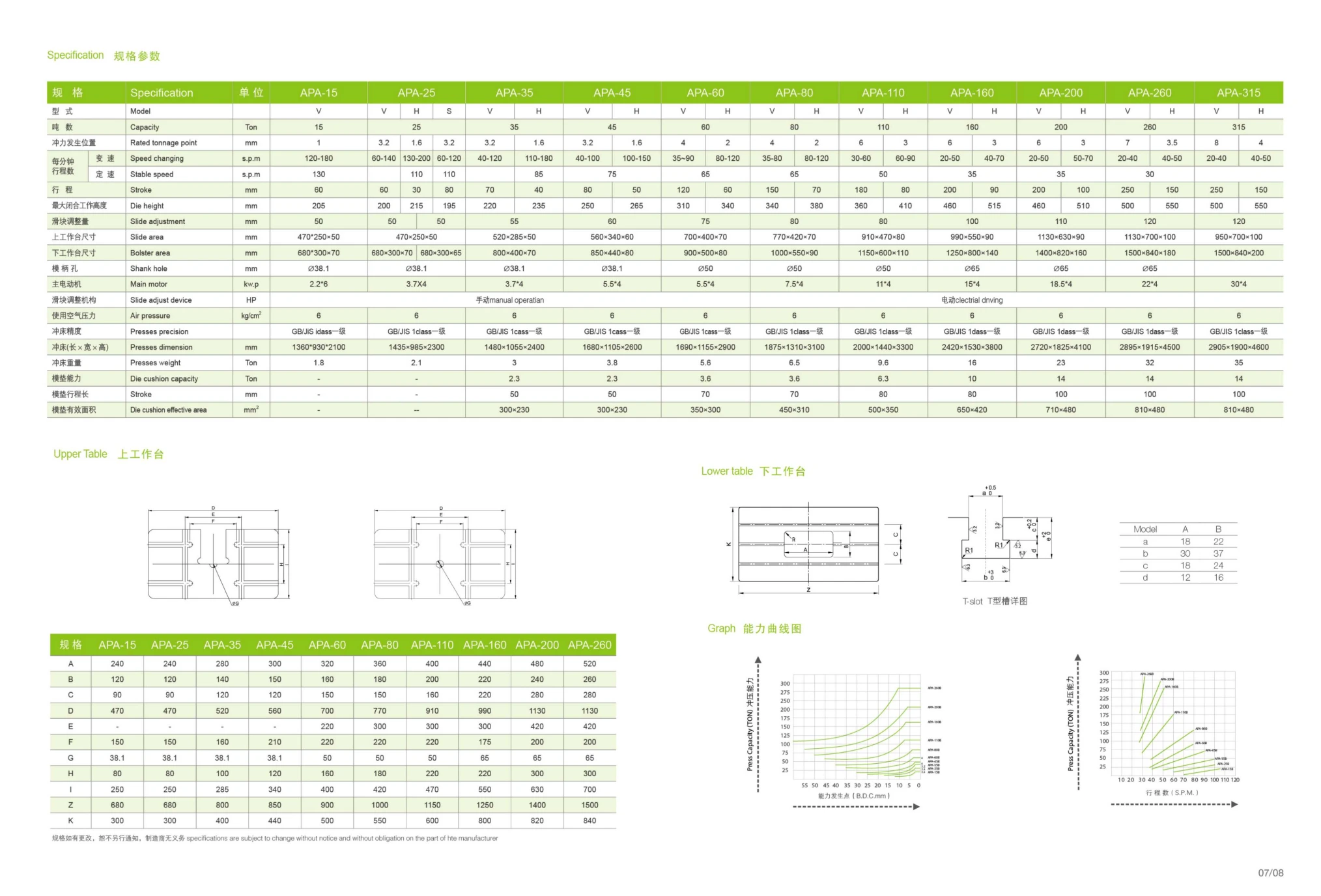

    3. Technical Specifications

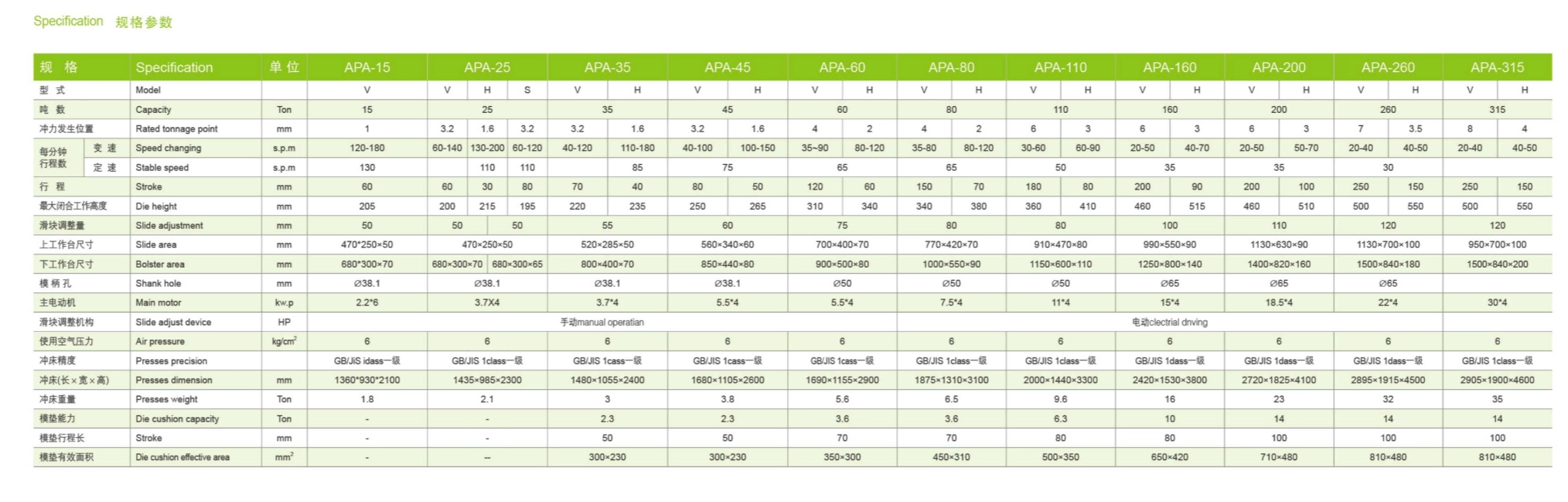

    SpecificationUnitAPA-110APA-160APA-200APA-260
    Model—V / HV / HV / HV / H
    CapacityTon110160200260
    Rated tonnage pointmmV: 6 / H: 3V: 6 / H: 3V: 6 / H: 3V: 7 / H: 3.5
    Variable speeds.p.mV: 30–60 / H: 60–90V: 20–50 / H: 40–70V: 20–50 / H: 50–70V: 20–40 / H: 40–50
    Stable speeds.p.m50353530
    StrokemmV: 180 / H: 80V: 200 / H: 90V: 200 / H: 100V: 250 / H: 150
    Die heightmmV: 360 / H: 410V: 460 / H: 515V: 460 / H: 510V: 500 / H: 550
    Slide adjustmentmm80100110120

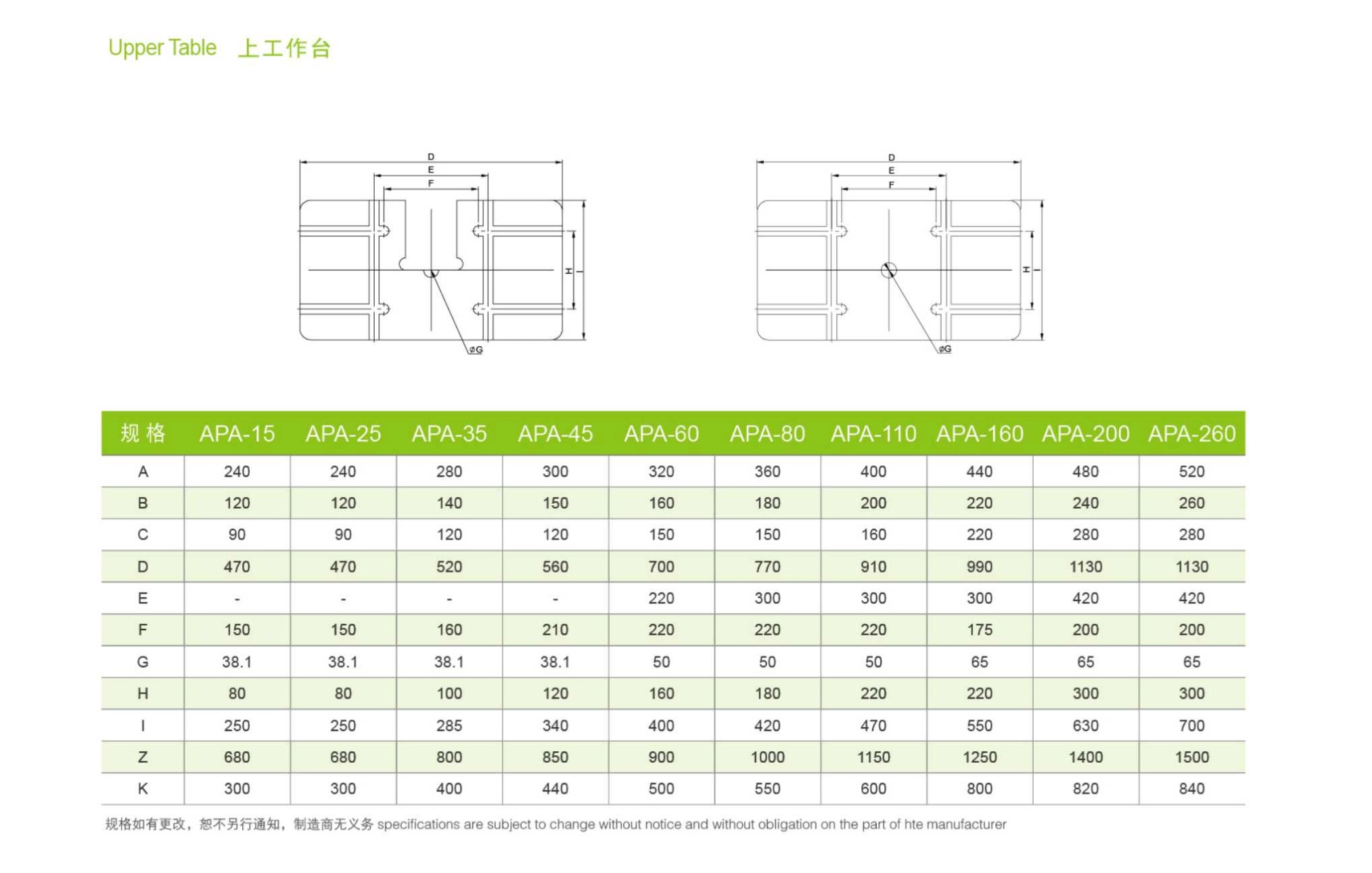

    Slide areamm910 × 470 × 80990 × 550 × 901130 × 630 × 901130 × 700 × 100
    Bolster areamm1150 × 600 × 1101250 × 800 × 1401400 × 820 × 1601500 × 840 × 180
    Shank holemmØ50Ø65Ø65Ø65
    Main motorkW × P11 × 415 × 418.5 × 422 × 4
    Slide adjustment device—MotorizedMotorizedMotorizedMotorized
    Air pressurekg/cm²6666
    Press precision—GB/JIS Class 1GB/JIS Class 1GB/JIS Class 1GB/JIS Class 1

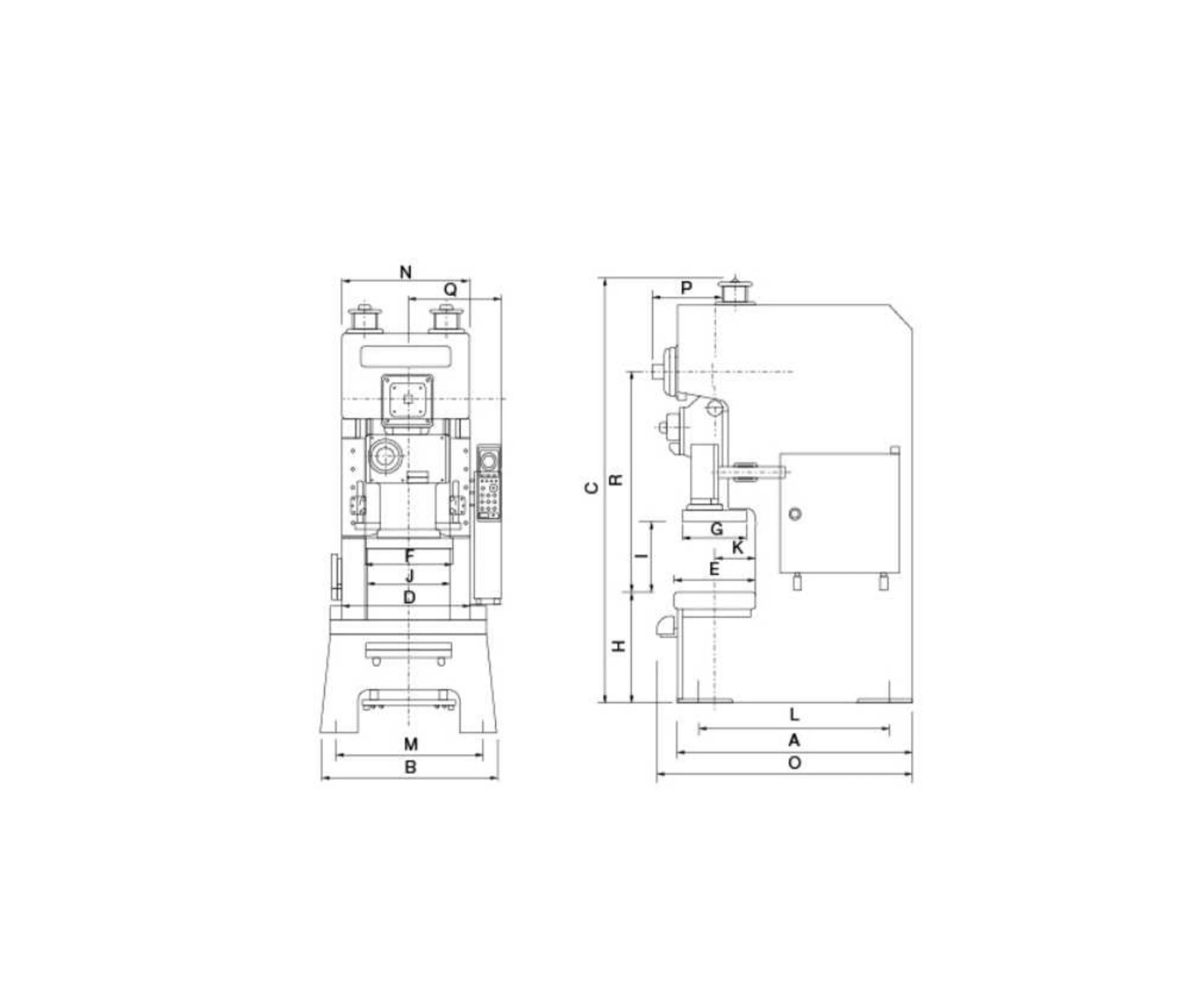

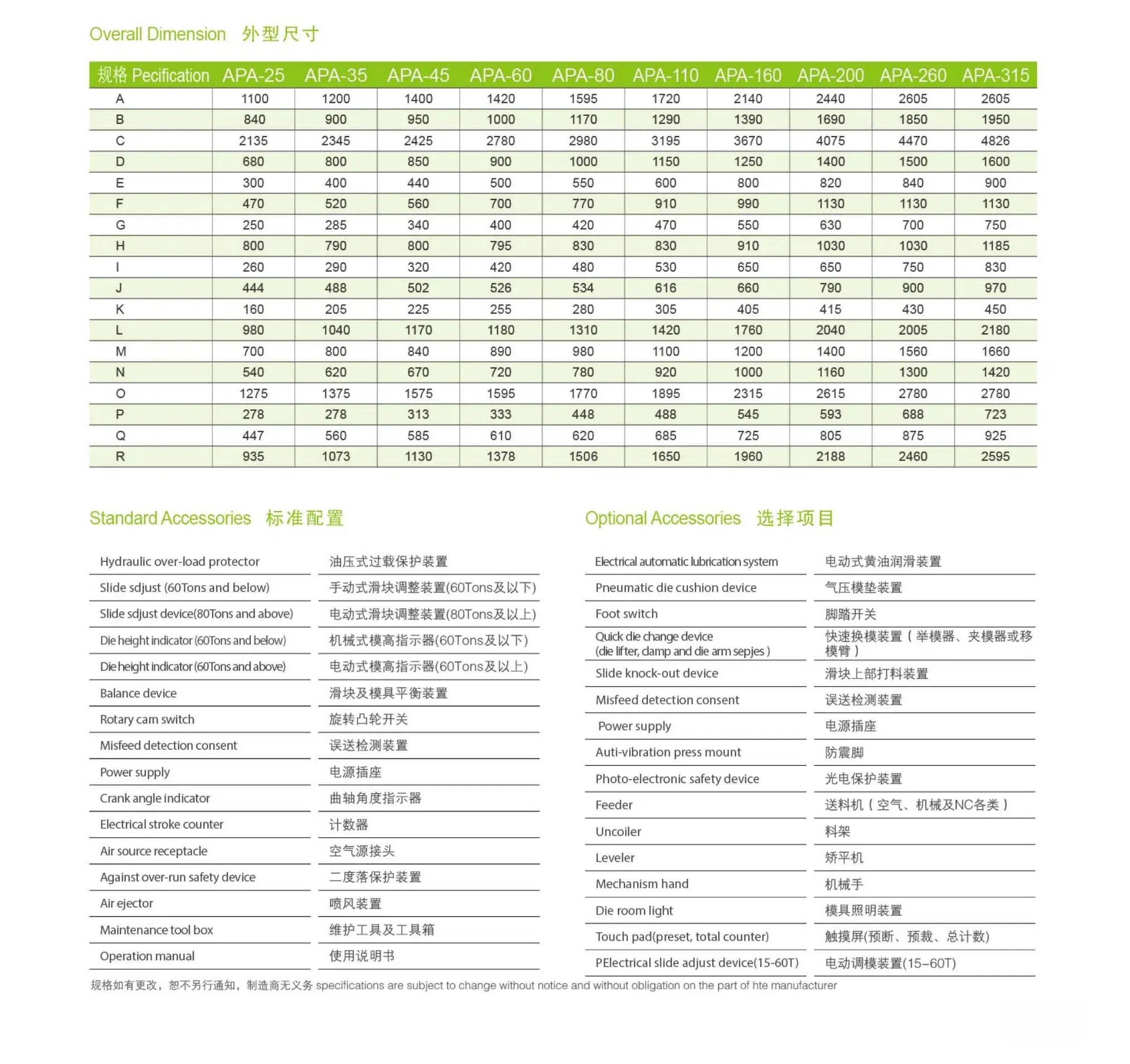

    Press dimensions (L × W × H)mm2000 × 1440 × 33002420 × 1530 × 38002720 × 1825 × 41002895 × 1915 × 4500
    Press weightTon9.6162332
    Die cushion capacityTon6.3101414
    Die cushion strokemm8080100100
    Die cushion effective areamm²500 × 350650 × 420710 × 480810 × 480
